Modal Module
The Modal Module is a core module included in the Carbon modding framework for Rust. It provides a flexible, interactive modal form system that allows plugins to prompt users for structured input using a wide variety of field types.
Note: This module is built into Carbon and does not require installation like traditional plugins. It is always enabled and cannot be disabled.
Overview
- Class Name:
ModalModule
- Enabled by default: Yes
- Force enabled: Yes (cannot be disabled)
- Supports Configuration: No
- Source: Carbon.Common/ModalModule
- Forces Modded Tag: No
This module allows plugins to create modals with input fields such as strings, booleans, numbers, colors, enums, and even buttons. Field validation and callbacks are supported.
Accessing the Module in Plugins
Plugins can access the ModalModule
using:
csharp
var modalModule = Carbon.Base.BaseModule.GetModule<ModalModule>();
How It Works

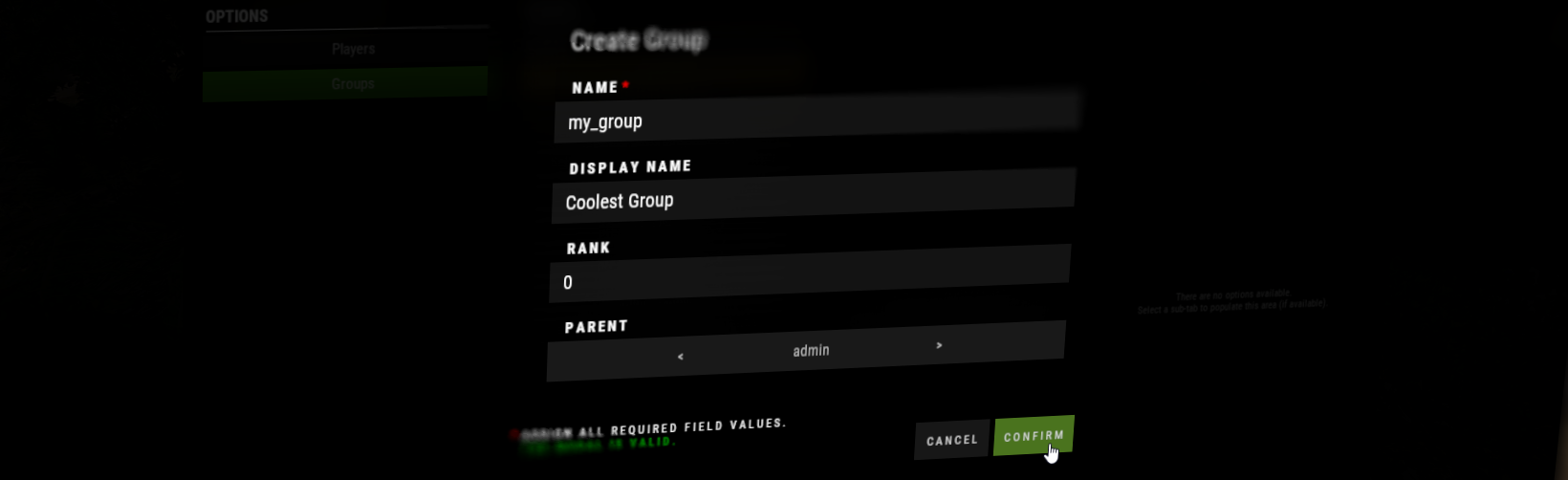

Open a Modal
csharp
var fields = new Dictionary<string, ModalModule.Modal.Field>
{
["name"] = ModalModule.Modal.Field.Make("Name", ModalModule.Modal.Field.FieldTypes.String, required: true),
["age"] = ModalModule.Modal.Field.Make("Age", ModalModule.Modal.Field.FieldTypes.Integer),
};
modalModule.Open(player, "User Info", fields,
onConfirm: (player, modal) =>
{
var name = modal.Get<string>("name");
var age = modal.Get<int>("age");
Puts($"{player.displayName} entered: {name}, {age}");
},
onCancel: () =>
{
Puts("Modal was cancelled.");
});
player
– TheBasePlayer
the modal is displayed to.title
– The modal title text.fields
– A dictionary of field keys and configurations.onConfirm
– Invoked with the modal data when the user confirms.onCancel
– Called if the user cancels the modal.
Example Use in Plugin
csharp
var fields = new Dictionary<string, ModalModule.Modal.Field>
{
["favorite_color"] = ModalModule.Modal.Field.Make("Favorite Color", ModalModule.Modal.Field.FieldTypes.HexColor),
["notifications"] = ModalModule.Modal.Field.Make("Enable Notifications", ModalModule.Modal.Field.FieldTypes.Boolean, @default: true)
};
modalModule.Open(player, "Preferences", fields,
onConfirm: (player, modal) =>
{
var color = modal.Get<string>("favorite_color");
var enabled = modal.Get<bool>("notifications");
Puts($"{player.displayName}'s prefs - Color: {color}, Notifications: {enabled}");
});
